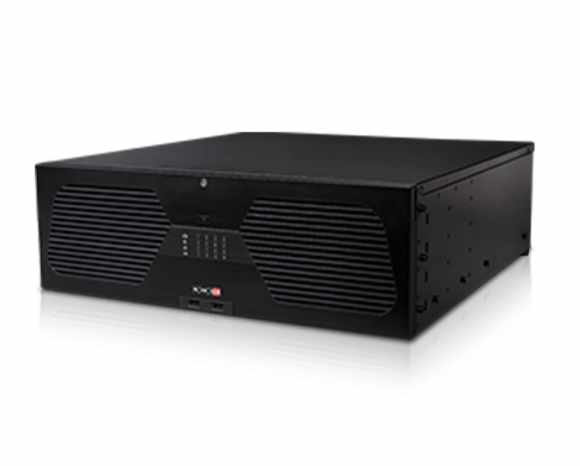

NVR5-128RT(3U)
128CH 8MP NVR
Input: 128 Channel (Via Network) • Output: HDMI(4K) x 2 dual display mode • 3U Case, 16 HDD - Hot Swap • RAID Support • Audio In/Out • Alarm In/Out • 2 x 1000Mbps Network
.jpg)
_specs.jpg)
Specifications
- Video:
Input: 2 x RJ-45 Network (1000Mbps) Support
Output: HDMI x 2 + VGA, Dual display mode
HDMI1:4K, 1920x1080 (1080P), 1280x1024
HDMI2 / VGA:1920x1080 (1080P), 1280x1024 - Bandwidth:
Incoming: 384Mbps
Outgoing: 384Mbps - Decoding Support:
H.265/H.264 - Recording:
Resolution: 8MP & lower
Real-Time 128CH 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1
FPS: 3200(PAL) / 3840 (NTSC)
- Playback:
16 Channels Simultaneously (locally), 9Channels (Remotely) - Audio:
Two way audio
Input: 1 Channel + Depends on Camera inputs - Alarm:
Input: 8 Physical Alarm channels + IP Camera inputs
Output: 4 Physical Alarm channels + IP Camera outputs only - Storage:
16 x SATA Hot swap (Up to 8TB Each) - USB Port:
2 x USB2.0
1 x USB3.0
E-Sata x 1
RAID 0/1/5/6/10 Support with Hot Swap. - Network:
2 x 1000Mbps
Output: 1 Channel on device (RCA)
